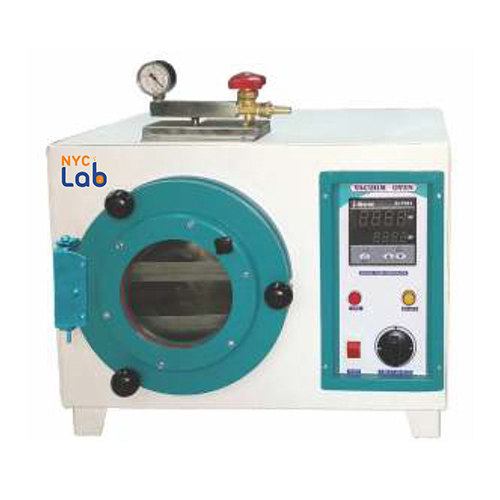

Vacuum Oven 1

Product Description

The NYCVMO01 Round Vacuum Oven is a highly efficient and versatile industrial oven that is perfect for a variety of applications Its superior vacuum seal and durable metal construction make it the perfect choice for industrial use This oven comes in a classic white and green color combination and is available in different sizes to suit your specific needs Its compact design and advanced features make it a popular choice among manufacturers and suppliers

Double Wall Construction Inner chamber made of Stainless Steel 304 grade with Exterior CRCA Steel with Powder coat finish

Inner made of Stainless Steel 316 grade and Exterior of Stainless Steel  304 grade in GMP MODEL

Gap between the two walls filled with high density low thermal mass glass wool insulation to minimize the skin temperature

Vacuum levels are controlled up to 760 MMHg

Food grade Silicon door gasket and positive door latch assures tight seal at all vacuum levels

Toughened glass window allows clear observation of load

Two stop cocks are fitted on the side of Oven One stop cock is continuously connected to the Vacuum Pump and the second one is used to release the Vacuum or for purging inert gases inside the Chamber

Non perforated StainlessSteel trays

Heating element made of best quality 8020 Ni chrome wire is wound on the outer surface of the inner chamber

Temp Range 50 deg C to 200 deg C

Temperature controlled by Dual display Microprocessor based PID Temp Controller  PT 100 Sensor with  2 deg C accuracy

Operates on 230 Volts AC Single phase 50 Hz

Specification

Model

Chamber Size

Rating Watt

Trays

NYCVMO01

9 Dia x 12 Depth

700 W

2 Nos

NYCVMO02

12 Dia x 15 Depth

950 W

2 Nos

NYCVMO03

15 Dia x 18 Depth

1100 W

2 Nos

FAQs of NYCVMO01 Round Vacuum Oven

Q What is the usage of this product

A The NYCVMO01 Round Vacuum Oven is designed for industrial use

Q What is the color of this product

A This product comes in a stylish white and green color

Q What sizes are available for this product

A This product is available in different sizes to meet your specific requirements

Q What is the application of this product

A This product is suitable for a wide range of industrial applications

Q Is there a warranty for this product

A Yes this product comes with a warranty to ensure your satisfaction
